ID Card Data Augmentation Pipeline

A comprehensive data augmentation pipeline for ID card images with YOLO-based detection and advanced augmentation techniques.

🚀 Features

YOLO-based ID Card Detection

• Automatic detection and cropping of ID cards from large images
• Configurable confidence and IoU thresholds
• Multiple cropping modes (bbox, square, aspect_ratio)
• Padding and target size customization

Advanced Data Augmentation

• Geometric Transformations: Rotation with multiple angles
• Random Cropping: Simulates partially visible cards
• Noise Addition: Simulates worn-out cards
• Partial Blockage: Simulates occluded card details
• Blurring: Simulates blurred but readable images
• Brightness/Contrast: Mimics different lighting conditions
• Grayscale Conversion: Final preprocessing step for all images

Flexible Configuration

• YAML-based configuration system
• Command-line argument overrides
• Environment-specific settings
• Comprehensive logging

📋 Requirements

# Python 3.8+
conda create -n gpu python=3.8
conda activate gpu

# Install dependencies
pip install -r requirements.txt

Dependencies

• opencv-python>=4.5.0
• numpy>=1.21.0
• Pillow>=8.3.0
• PyYAML>=5.4.0
• ultralytics>=8.0.0 (for YOLO models)

🛠️ Installation

1. Clone the repository

git clone <repository-url>
cd IDcardsGenerator

2. Install dependencies

pip install -r requirements.txt

3. Prepare YOLO model (optional)

# Place your trained YOLO model at:
data/weights/id_cards_yolov8n.pt

📖 Usage

Basic Usage

# Run with default configuration
python main.py

# Run with ID card detection enabled
python main.py --enable-id-detection

# Run with custom input/output directories
python main.py --input-dir "path/to/input" --output-dir "path/to/output"

Configuration Options

ID Card Detection

# Enable detection with custom model
python main.py --enable-id-detection --model-path "path/to/model.pt"

# Adjust detection parameters
python main.py --enable-id-detection --confidence 0.3 --crop-mode square

# Set target size for cropped cards
python main.py --enable-id-detection --crop-target-size "640,640"

Data Augmentation

# Customize augmentation parameters
python main.py --num-augmentations 5 --target-size "512,512"

# Preview augmentation results
python main.py --preview

Configuration File

Edit config/config.yaml for persistent settings:

# ID Card Detection
id_card_detection:
  enabled: false  # Enable/disable YOLO detection
  model_path: "data/weights/id_cards_yolov8n.pt"
  confidence_threshold: 0.25
  iou_threshold: 0.45
  padding: 10
  crop_mode: "bbox"
  target_size: null

# Data Augmentation
augmentation:
  rotation:
    enabled: true
    angles: [30, 60, 120, 150, 180, 210, 240, 300, 330]
  random_cropping:
    enabled: true
    ratio_range: [0.7, 1.0]
  random_noise:
    enabled: true
    mean_range: [0.0, 0.7]
    variance_range: [0.0, 0.1]
  partial_blockage:
    enabled: true
    coverage_range: [0.0, 0.25]
  blurring:
    enabled: true
    kernel_ratio_range: [0.0, 0.0084]
  brightness_contrast:
    enabled: true
    alpha_range: [0.4, 3.0]
    beta_range: [1, 100]
  grayscale:
    enabled: true  # Applied as final step

# Processing
processing:
  target_size: [640, 640]
  num_augmentations: 3
  save_format: "jpg"
  quality: 95

🔄 Workflow

Two-Step Processing Pipeline

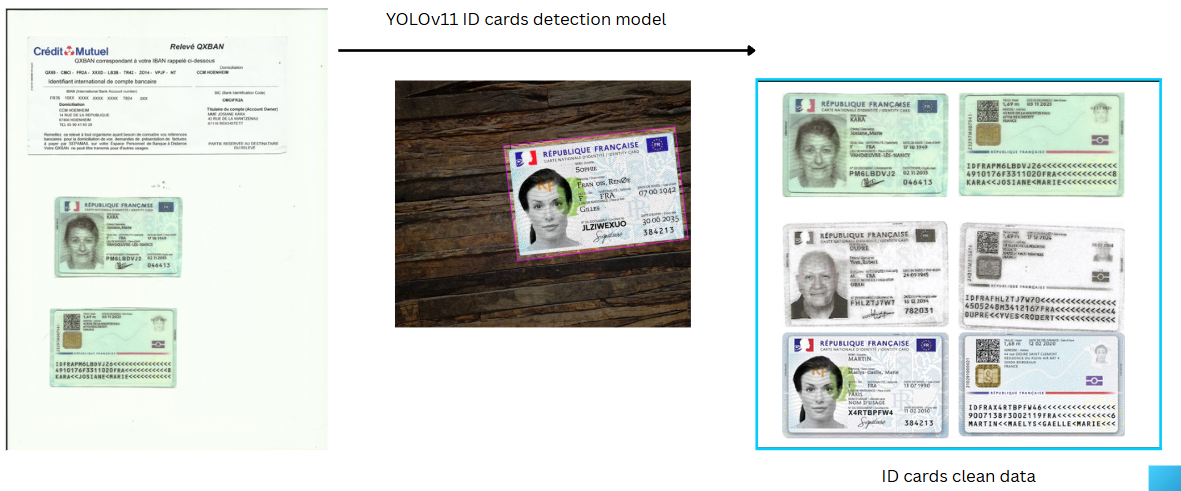

Step 1: ID Card Detection (Optional)

When id_card_detection.enabled: true:

1. Input: Large images containing multiple ID cards
2. YOLO Detection: Locate and detect ID cards
3. Cropping: Extract individual ID cards with padding
4. Output: Cropped ID cards saved to out/processed/

Step 2: Data Augmentation

1. Input: Original images OR cropped ID cards
2. Augmentation: Apply 6 augmentation methods:
   • Rotation (9 different angles)
   • Random cropping (70-100% ratio)
   • Random noise (simulate wear)
   • Partial blockage (simulate occlusion)
   • Blurring (simulate motion blur)
   • Brightness/Contrast adjustment
3. Grayscale: Convert all images to grayscale (final step)
4. Output: Augmented images in main output directory

Direct Augmentation Mode

When id_card_detection.enabled: false:

• Skips YOLO detection
• Applies augmentation directly to input images
• All images are converted to grayscale

📊 Output Structure

output_directory/
├── processed/                    # Cropped ID cards (if detection enabled)
│   ├── id_card_001.jpg
│   ├── id_card_002.jpg
│   └── processing_summary.json
├── im1__rotation_01.png         # Augmented images
├── im1__cropping_01.png
├── im1__noise_01.png
├── im1__blockage_01.png
├── im1__blurring_01.png
├── im1__brightness_contrast_01.png
└── augmentation_summary.json

🎯 Use Cases

Training Data Generation

# Generate diverse training data
python main.py --enable-id-detection --num-augmentations 10

Quality Control

# Preview results before processing
python main.py --preview

Batch Processing

# Process large datasets
python main.py --input-dir "large_dataset/" --output-dir "augmented_dataset/"

⚙️ Advanced Configuration

Custom Augmentation Parameters

augmentation:
  rotation:
    angles: [45, 90, 135, 180, 225, 270, 315]  # Custom angles
  random_cropping:
    ratio_range: [0.8, 0.95]  # Tighter cropping
  random_noise:
    mean_range: [0.1, 0.5]    # More noise
    variance_range: [0.05, 0.15]

Performance Optimization

performance:
  num_workers: 4
  prefetch_factor: 2
  pin_memory: true
  use_gpu: false

📝 Logging

The system provides comprehensive logging:

• File: logs/data_augmentation.log
• Console: Real-time progress updates
• Summary: JSON files with processing statistics

Log Levels

• INFO: General processing information
• WARNING: Non-critical issues (e.g., no cards detected)
• ERROR: Critical errors

🔧 Troubleshooting

Common Issues

1. No images detected

   • Check input directory path
   • Verify image formats (jpg, png, bmp, tiff)
   • Ensure images are not corrupted

2. YOLO model not found

   • Place model file at data/weights/id_cards_yolov8n.pt
   • Or specify custom path with --model-path

3. Memory issues

   • Reduce num_augmentations
   • Use smaller target_size
   • Enable GPU if available

Performance Tips

• GPU Acceleration: Set use_gpu: true in config
• Batch Processing: Use multiple workers for large datasets
• Memory Management: Process in smaller batches

🤝 Contributing

1. Fork the repository
2. Create a feature branch
3. Make your changes
4. Add tests if applicable
5. Submit a pull request

📄 License

This project is licensed under the MIT License - see the LICENSE file for details.

🙏 Acknowledgments

• YOLOv8: Ultralytics for the detection framework
• OpenCV: Computer vision operations
• NumPy: Numerical computations

---

For questions and support, please open an issue on GitHub.
